Digital Mixers

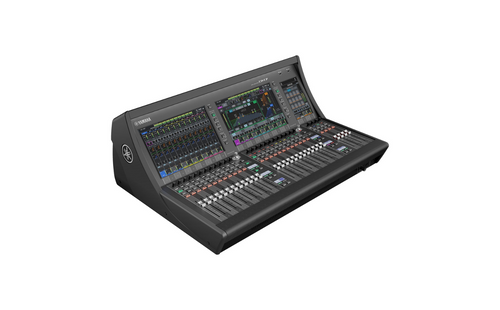

DM7

Digital Mixing Console

The DM7 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and a 2 x 12” + 1 x 7” multi-touch screen.

Input mixing channels: 120 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 2, 7" multi-touch screen x 1
Faders: 28 (12 + 12 + 4)
Analog I/O: 32 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 2 in / 2 out (with SRC)
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3" x 12.8" x 22.2")
Net Weight: 23.5 kg (51.8 lb)

DM3

Digital Mixing Console

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.

8 + 1 fader configuration
9-inch multi-touch screen
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
Dante: 16 inputs, and 16 outputs
USB: 18 inputs, and 18 outputs
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
Net weight: 6.5 kg

TF5

Digital Mixing Console

High input capacity and fader count makes this powerful console ideal for larger applications.

33 motor faders (32 channels + 1 master)
48 input mixing channels (40 mono + 2 stereo + 2 return)
20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
8 DCA groups with Roll-out
32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
16 analog XLR outputs
34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
8 Effects and 10 GEQ
1 expansion slot for NY64-D audio interface card

TF3

Digital Mixing Console

Ample input capacity and hands-on control in a compact console that can handle a wide range of applications.

25 motor faders (24 channels + 1 master)
48 input mixing channels (40 mono + 2 stereo + 2 return)
20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
8 DCA groups with Roll-out
24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
16 analog XLR outputs
34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
8 Effects and 10 GEQ
1 expansion slot for NY64-D audio interface card

TF1

Digital Mixing Console

Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.

17 motor faders (16 channels + 1 master)
40 input mixing channels (32 mono + 2 stereo + 2 return)
20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
8 DCA groups with Roll-out
16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
16 analog XLR outputs
34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
8 Effects and 10 GEQ
1 expansion slot for NY64-D audio interface card

Tio1608-D

I/O Rack

The Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs.

NY64-D

The NY64-D is a Dante expansion card for TF series consoles.
